With the new series of vacuum lifting machines, it is possible to efficiently and safely lift and transport long, thin glass panels. Thanks to the special suction cup suspension system, the lifting machine is placed onto the load without impact, ensuring damage-free transportation. The 90° tilting and 360° rotating mechanism provides solutions for processing units and facade work. Due to the device's ease of use, even loads several meters long can be transported without issues by a single operator.

• Audible and visual warning system
• Vacuum gauge within the field of view
• Manual vacuum control with spherical valves
• Ergonomic steering arm
• Spring-supported suction cup suspensions in two directions
• Manually adjustable suction cups in width and length for transporting products of different sizes
• Completely damage-free load handling
• Very easy operation, requiring only 1 operator
• Short processing time thanks to fast lifting and lowering
• Customized complete solutions for your production needs

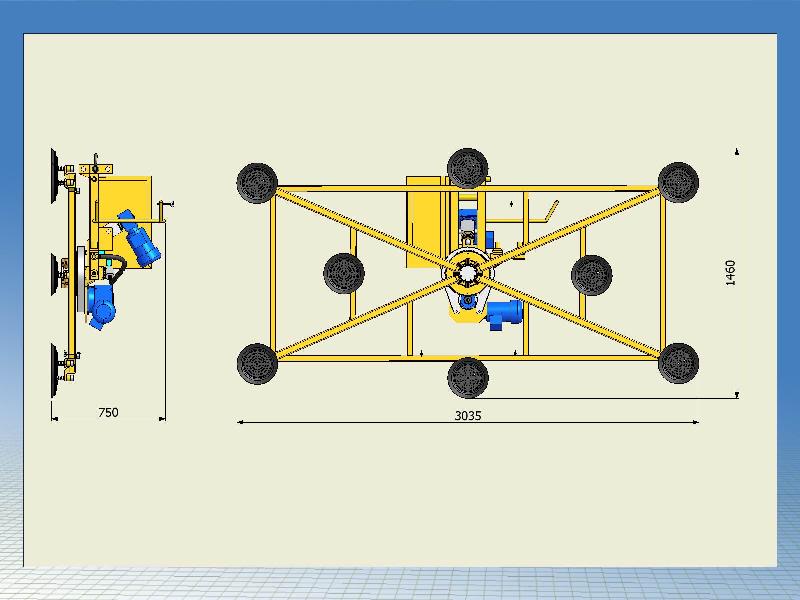

Vacuum Lift Ptr300 C1 - Ptr300 C2 (maximum liftable weight: 1000 kg)
